Description
TP-Link Archer T4U Plus AC1300 Dual Antennas High-Gain Wireless USB Adapter
The Archer T4U Plus grants your PC access to 802.11ac technology while receiving WiFi signals on two separate bands, boosting speeds up to 1.2 Gbps (up to 400 Mbps on 2.4 GHz and 867 Mbps on 5 GHz). This means better networking experience for all your online needs. Choose the 2.4 GHz band for web browsing, email, and social media, or switch to 5 GHz for gaming, HD streaming, and large file downloads.

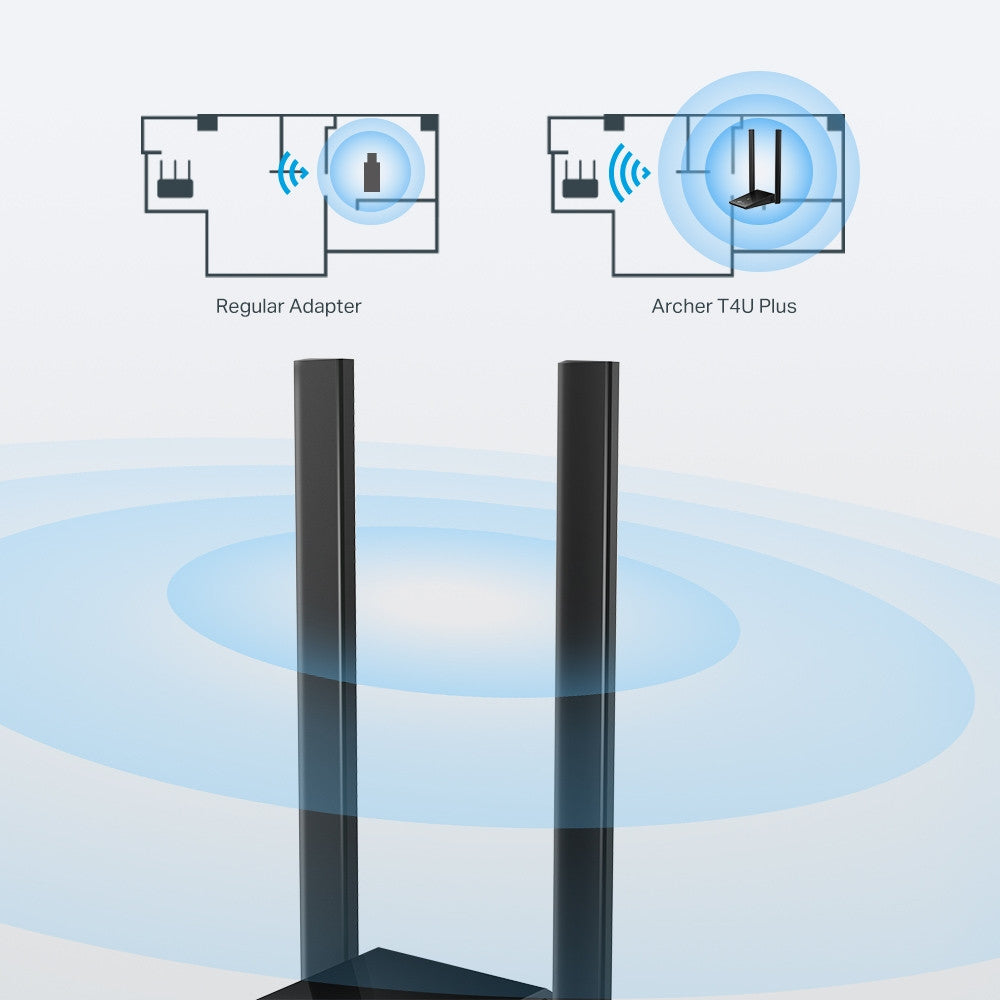

Dual High-Gain Antennas, Broader Coverage
Two powerful 5 dBi high-gain external antennas ensure stronger signal transmission and reception between web devices and your router even from farther away or across multiple walls and floors. Enjoy stable wireless connections and faster speeds without WiFi drops and lag.
A Great Match for Faster Speeds
Connect the newest hardware with USB 3.0. USB 3.0 is specially suited for the 802.11ac WiFi protocol and utilizes its transfer rate for better connections. Take full advantage of USB 3.0 and 802.11ac WiFi for optimized network performance.
Adjustable, Multi-Directional Antenna
Rotate and adjust the antenna 180° for the best reception in different environments.
Features
-
Ultra-Fast Wi-Fi - 1300Mbps wireless speeds (400Mpbs on the 2.4GHz band and 867Mbps on the 5GHz band) with support for the next generation 802.11ac Wi-Fi standard
-
Dual Band Wireless - 2.4GHz and 5GHz bands for flexible connectivity
-
Dual High-Gain antennas - Improved range, signal quality and transmission performance
-
MU-MIMO - Delivers highly efficient wireless connection
-
Super Speed USB 3.0 Port - Up to 10x faster transfer speeds than USB 2.0
-
Adjustable, Multi-Directional Antenna - Enable flexible deployment for the best reception
Technical Specification
Wireless Standards: IEEE 802.11b/g/n 2.4 GHz, IEEE 802.11a/n/ac 5 GHz
Antenna: 2x External 5 dBi High Gain Antennas
Signal Rate 5 GHz: 11ac: Up to 867 Mbps(dynamic), 11n: Up to 300 Mbps(dynamic), 11a: Up to 54 Mbps(dynamic)
Signal Rate 2.4 GHz: 11n: Up to 400 Mbps(dynamic), 11g: Up to 54 Mbps(dynamic), 11b: Up to 11 Mbps(dynamic)
Wireless Modes: Infrastructure mode
Interface: USB 3.0
Package Contents:
| HARDWARE FEATURES |
| Interface |
USB 3.0 |
| LED |
Status |
| Dimensions ( W x D x H ) |
84 × 156.3 × 19.2 mm (3.3 × 6.2 × 0.76 in) |
| Antenna |
2× External 5 dBi High Gain Antennas |
| WIRELESS FEATURES |
| Wireless Standards |
IEEE 802.11b/g/n 2.4 GHz, IEEE 802.11a/n/ac 5 GHz |
| Signal Rate |
5 GHz:
11ac: Up to 867 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
2.4 GHz:
11n: Up to 400 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic) |
| Reception Sensitivity |
5 GHz:
11ac VHT80: -62dBm
11ac VHT40: -65dBm
11ac VHT20: -69dBm
11n HT40: -71dBm
11n HT20: -74dBm
11a 54Mbps: -77dBm
2.4 GHz:
11n HT40: -70dBm
11n HT20: -72dBm
11g 54Mbps: -75dBm
11b 11Mbps: -87dBm |
| Wireless Modes |
Infrastructure mode |
| Wireless Security |
WPA/WPA2/WPA3 encryption standards |
| Transmission Power |
5 GHz: 20dBm(FCC) / 20dBm(CE) (EIRP)
2.4 GHz : 18dBm(FCC) / 18dBm(CE) (EIRP) |
| OTHERS |
| Certification |
FCC, CE, RoHS |
| Package Content |
AC1300 Dual Antennas High-Gain Wireless USB Adapter Archer T4U Plus
Quick Installation Guide
Resource CD
1-meter USB 3.0 Cable |
| System Requirements |
Supported operating systems include Windows11/10/8.1/8/7 |
| Environment |
Operating Temperature: 0℃~40℃ (32℉ ~104℉
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
| Accessories Specifications |
USB Cable Length: 1m |
