Description

Tenda TX12 Pro AX3000 WiFi 6 Dual-Band Gigabit Ethernet Wireless Router

Powerful Processing Powering Stable Network

Armed with a 1.7GHz Quad-Core Broadcom high performance CPU for faster Wi-Fi speeds(Up to 2976Mbps) and a stable network.

Smooth Networking Experience

Both 2.4 GHz band and 5 GHz band get upgraded to the latest generation—perfect for online gaming, 4K streaming, and fast downloading.

Stronger Wi-Fi Signal Throughout Your Home

4 high-performance signal enhancement modules and 5 external 6dBi high-gain antennas combineto extend strong and reliable Wi-Fi throughout your home.

Ultra-wide Coverage with Wi-Fi+

Equipped with the Wi-Fi+ function, multiple TX12 Pro can be easily networked without configuration, realizing a high-speed whole-home Wi-Fi experience for larger units.

One-click Intelligent Diagnosis

When you encounter network freezes, dropped calls, and current interruptions, you can click one-key optimization on the web management interface, and the router can quickly complete self-checks and repair network problems.

160MHz Bandwidth: Feel the True Power of Wi-Fi 6

TX12 Pro Dual-band speeds up to 2976Mbps and supports 160Mhz ultra-large bandwidth. While using a mobile phone that also supports 160Mhz bandwidth connected to TX12 Pro, it can keep away from signal interference and fully play the device's properties. Enjoy the fast and smooth Wi-Fi 6.

More Enjoyable with Multiplayer

OFDMA+MU-MIMO makes your Wi-Fi signal stronger by allowing multiple clients to share one band simultaneously, which cuts latency and jittering.

Specifications

• Standards & Protocols: IEEE802.3, IEEE802.3u, IEEE802.3ab

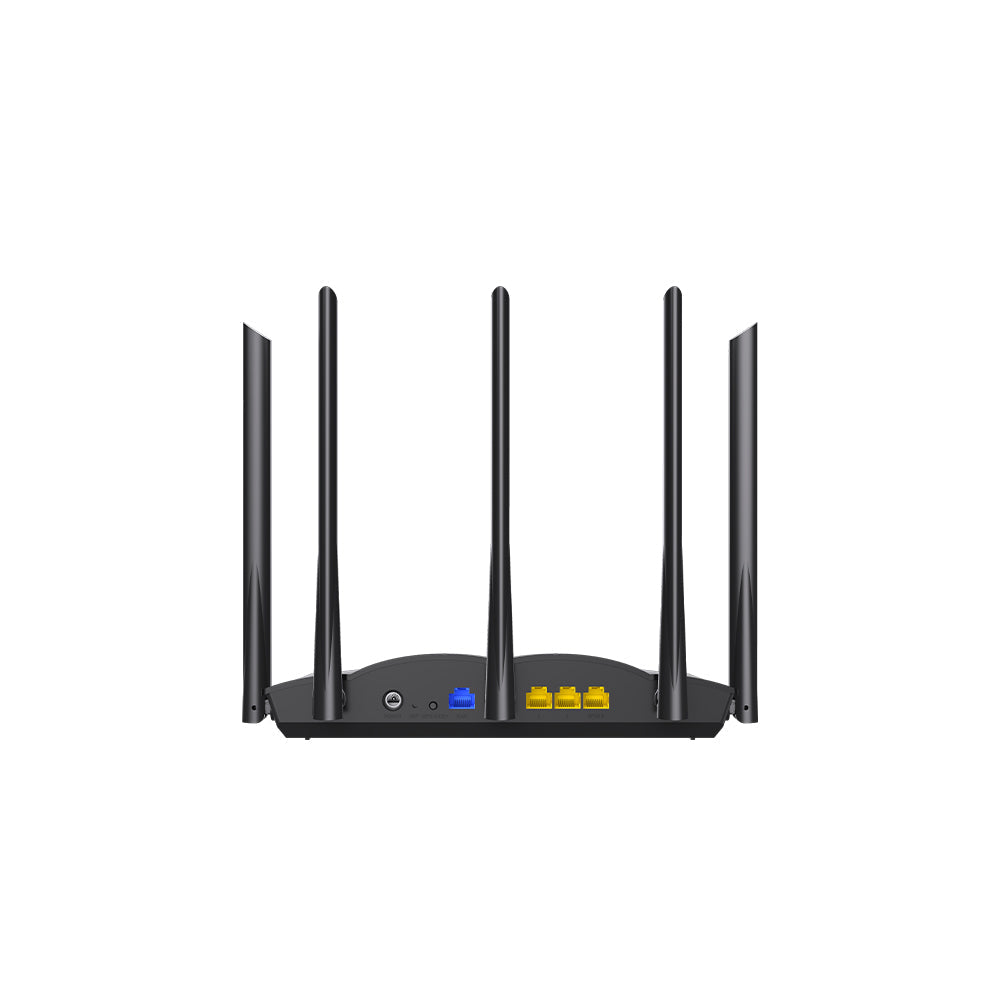

• Interfaces
  • 1* 10/100/1000Mbps WAN port
  • 3* 10/100/1000Mbps LAN ports
• Antenna: 5* 6dBi external antennas
• Buttons
  • WPS
  • Reset button
• Power
  • Input：AC 100-240V~50/60Hz 0.6A
  • Output：DC 12V⎓1.5A
• Dimensions: 267 x 166 x 222 mm
• LED Indicator: SYS *1
• Wireless Standards
  • IEEE 802.11ac/a/n/ax 5GHz
  • IEEE 802.11b/g/n/ax 2.4GHz
• Data Rate
  • 5GHz: Up to 2402Mbps
  • 2.4GHz: Up to 574Mbps
• Frequency: Simultaneous dual band 2.4 & 5GHz
• Transmission Power (CE)
  • <20dBm (2.4G)
  • <23dBm (5G)
• Basic Features
  • SSID Broadcast: Enable/Disable
  • Transmission Power: high, medium, low
  • Beamforming
  • MU-MIMO
• Wireless Security
  • WPA-PSK,WPA2-PSK, WPA/WPA2-PSK/WPA3-SAE/WPA2-PSK
  • Wireless Security: Enable/Disable
  • WPS (WiFi Protected Set-up) fast encryption
• Internet Connection Type: PPPoE, Dynamic IP, Static IP
• Operating Modes
  • Wireless Router Mode
  • Universal Repeater Mode（Client+AP,WISP
• DHCP
  • DHCP Server
  • DHCP Client List
  • DHCP Reservation
• Virtual Server
  • Port Forwarding
  • DMZ Host
  • UPnP
• Security
  • Client Filter
  • Parental Control (support black list and white list)
  • Remote Web Management
• Firewall
  • Forbid UDP flood attack
  • Forbid TCP flood attack
  • Forbid ICMP attack
  • Forbid WAN PING from internet
• DDNS: DynDns, NO-IP, Oray.com, 3322.org, 88ip
• VPN
  • PPTP Client
  • PPTP Server
  • L2TP Client
  • PPTP Pass Through
  • L2TP Pass Through
  • IPSec Pass Through
• Special Features
  • WiFi+(Mesh System)
  • Smart diagnosis
  • VLAN
  • TR069
  • Smart Traffic Prioritisation
  • Smart WiFi Schedule
  • Smart LED on/off
• Operating Temperature: 0℃ ~ 40℃
• Operating Humidity: 10% ~ 90% RH non-condensing
• Certification: CE/FCC/RoHS
• EIRP Power (Max)
  • 2.400-2.4835GHz: 19.95dBm (EIRP)
  • 5.150-5.250GHz: 22.98dBm (EIRP)
• Package Contents
  • Wireless Router
  • Power Adapter
  • Install Guide
  • Ethernet Cable
